#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <termios.h>
#include <stdint.h>

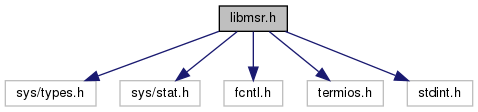

Include dependency graph for libmsr.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	msr_cmd
	Represents a command issued to the MSR device. More...

struct	msr_end
	Represents the end of a read/write command. More...

struct	msr_lz
	Represents leading zero counts on a card. More...

struct	msr_model
	Represents the MSR's model. More...

struct	msr_bpc
	Represents the MSR's BPC settings for each track. More...

struct	msr_track
	Represents a single track on a magnetic card. More...

struct	msr_tracks
	Represents all tracks on a magnetic card. More...

Macros
#define	LIBMSR_ERR_OK 0x0

#define	LIBMSR_ERR_GENERIC 0x1000

#define	LIBMSR_ERR_ISO 0x1100

#define	LIBMSR_ERR_DEVICE 0x2000

#define	LIBMSR_ERR_SERIAL 0x4000

#define	MSR_MAX_TRACK_LEN 255

#define	MSR_MAX_TRACKS 3

#define	MSR_BLOCKING O_NONBLOCK

#define	MSR_BAUD B9600

#define	MSR_ESC 0x1B

#define	MSR_FS 0x1C

#define	MSR_STS_OK 0x30

#define	MSR_STS_ERR 0x41

#define	MSR_CMD_READ 0x72

#define	MSR_CMD_WRITE 0x77

#define	MSR_CMD_RAW_READ 0x6D

#define	MSR_CMD_RAW_WRITE 0x6E

#define	MSR_STS_RW_ERR 0x31

#define	MSR_STS_RW_CMDFMT_ERR 0x32

#define	MSR_STS_RW_CMDBAD_ERR 0x34

#define	MSR_STS_RW_SWIPEBAD_ERR 0x39

#define	MSR_RW_START 0x73 /* 's' */

#define	MSR_RW_END 0x3F /* '?' */

#define	MSR_RW_BAD 0x2A /* '' /

#define	MSR_RW_EMPTY 0x2B /* '+' */

#define	MSR_CMD_DIAG_COMM 0x65

#define	MSR_STS_COMM_OK 0x79

#define	MSR_CMD_DIAG_SENSOR 0x86

#define	MSR_STS_SENSOR_OK MSR_STS_OK

#define	MSR_CMD_DIAG_RAM 0x87

#define	MSR_STS_RAM_OK MSR_STS_OK

#define	MSR_STS_RAM_ERR MSR_STS_ERR

#define	MSR_CMD_SLZ 0x7A

#define	MSR_STS_SLZ_OK MSR_STS_OK

#define	MSR_STS_SLZ_ERR MSR_STS_ERR

#define	MSR_CMD_CLZ 0x6C

#define	MSR_CMD_ERASE 0x63

#define	MSR_STS_ERASE_OK MSR_STS_OK

#define	MSR_STS_ERASE_ERR MSR_STS_ERR

#define	MSR_ERASE_TK1 0x00

#define	MSR_ERASE_TK2 0x02

#define	MSR_ERASE_TK3 0x04

#define	MSR_ERASE_TK1_TK2 0x03

#define	MSR_ERASE_TK1_TK3 0x05

#define	MSR_ERASE_TK2_TK3 0x06

#define	MSR_ERASE_ALL 0x07

#define	MSR_CMD_SETBPI 0x62

#define	MSR_STS_BPI_OK MSR_STS_OK

#define	MSR_STS_BPI_ERR MSR_STS_ERR

#define	MSR_CMD_MODEL 0x74

#define	MSR_STS_MODEL_OK 0x53

#define	MSR_MODEL_MSR206_1 0x31

#define	MSR_MODEL_MSR206_2 0x32

#define	MSR_MODEL_MSR206_3 0x33

#define	MSR_MODEL_MSR206_5 0x35

#define	MSR_CMD_FWREV 0x76

#define	MSR_FWREV_FMT "REV?X.XX"

#define	MSR_CMD_SETBPC 0x6F

#define	MSR_STS_BPC_OK MSR_STS_OK

#define	MSR_STS_BPC_ERR MSR_STS_ERR

#define	MSR_CMD_SETCO_HI 0x78

#define	MSR_CMD_SETCO_LO 0x79

#define	MSR_STS_CO_OK MSR_STS_OK

#define	MSR_STS_CO_ERR MSR_STS_ERR

#define	MSR_CMD_GETCO 0x64

#define	MSR_CO_HI 0x68

#define	MSR_CO_LO 0x6C

#define	MSR_CMD_RESET 0x61

#define	MSR_CMD_LED_OFF 0x81

#define	MSR_CMD_LED_ON 0x82

#define	MSR_CMD_LED_GRN_ON 0x83

#define	MSR_CMD_LED_YLW_ON 0x84

#define	MSR_CMD_LED_RED_ON 0x85

Typedefs
typedef struct msr_cmd	msr_cmd_t
	Represents a command issued to the MSR device. More...

typedef struct msr_end	msr_end_t
	Represents the end of a read/write command. More...

typedef struct msr_lz	msr_lz_t
	Represents leading zero counts on a card. More...

typedef struct msr_model	msr_model_t
	Represents the MSR's model. More...

typedef struct msr_bpc	msr_bpc_t
	Represents the MSR's BPC settings for each track. More...

typedef struct msr_track	msr_track_t
	Represents a single track on a magnetic card. More...

typedef struct msr_tracks	msr_tracks_t
	Represents all tracks on a magnetic card. More...

Functions
int	msr_serial_open (char path, int fd, int blocking, speed_t baud)
	Open a serial connection to the MSR device. More...

int	msr_serial_close (int fd)
	Close a serial connection to the MSR device. More...

int	msr_serial_readchar (int fd, uint8_t *c)
	Read a single character from the MSR device. More...

int	msr_serial_write (int fd, void *buf, size_t len)
	Write a series of bytes to the MSR device. More...

int	msr_serial_read (int fd, void *buf, size_t len)
	Read a series of bytes from the MSR device. More...

int	msr_zeros (int fd, msr_lz_t *lz)
	Get the MSR device's current leading-zero setting. More...

int	msr_commtest (int fd)
	Perform a communications test. More...

int	msr_init (int fd)
	Initialize the MSR device. More...

int	msr_fwrev (int fd, uint8_t *buf)
	Check the device's firmware revision. More...

int	msr_model (int fd, uint8_t *buf)
	Check the device's model. More...

int	msr_sensor_test (int fd)
	Check the device's sensor. More...

int	msr_ram_test (int fd)
	Check the device's RAM. More...

int	msr_get_co (int fd)
	Get the device's coercivity level. More...

int	msr_set_hi_co (int fd)
	Set the device's coercivity to high. More...

int	msr_set_lo_co (int fd)
	Set the device's coercivity to low. More...

int	msr_reset (int fd)
	Reset the MSR device. More...

int	msr_iso_read (int fd, msr_tracks_t *tracks)
	Read an ISO formatted card. More...

int	msr_iso_write (int fd, msr_tracks_t *tracks)
	Write an ISO formatted card. More...

int	msr_raw_read (int fd, msr_tracks_t *tracks)
	Read raw data from a card. More...

int	msr_raw_write (int fd, msr_tracks_t *tracks)
	Write raw data to a card. More...

int	msr_erase (int fd, uint8_t tracks)
	Erase one or more tracks on a card. More...

int	msr_flash_led (int fd, uint8_t led)
	Toggle the LEDs on the MSR device. More...

int	msr_set_bpi (int fd, uint8_t bpi)
	Set the MSR device's BPI value. More...

int	msr_set_bpc (int fd, uint8_t bpc1, uint8_t bpc2, uint8_t bpc3)
	Set the MSR device's BPC value for each track. More...

int	msr_reverse_tracks (msr_tracks_t *tracks)
	Reverse a msr_tracks_t structure in-place. More...

int	msr_reverse_track (msr_track_t *track)
	Reverse a msr_track_t structure in-place. More...

void	msr_pretty_output_hex (int fd, msr_tracks_t tracks)
	Dump a "pretty" hexadecimal representation of tracks to a fd. More...

void	msr_pretty_output_string (int fd, msr_tracks_t tracks)
	Dump a "pretty" string representation of tracks to a fd. More...

void	msr_pretty_output_bits (int fd, msr_tracks_t tracks)
	Dump a "pretty" binary representation of tracks to a fd. More...

void	msr_pretty_printer_hex (msr_tracks_t tracks)
	Dump a "pretty" hexadecimal representation of tracks to stdout. More...

void	msr_pretty_printer_string (msr_tracks_t tracks)
	Dump a "pretty" string representation of tracks to stdout. More...

void	msr_pretty_printer_bits (msr_tracks_t tracks)
	Dump a "pretty" binary representation of tracks to stdout. More...

const unsigned char	msr_reverse_byte (const unsigned char byte)
	Reverse a single byte. More...

Macro Definition Documentation

◆ LIBMSR_ERR_DEVICE

#define LIBMSR_ERR_DEVICE 0x2000

Returned on error with device control.

◆ LIBMSR_ERR_GENERIC

#define LIBMSR_ERR_GENERIC 0x1000

Returned on generic error.

◆ LIBMSR_ERR_ISO

#define LIBMSR_ERR_ISO 0x1100

Returned on error with ISO-formatted card.

◆ LIBMSR_ERR_OK

#define LIBMSR_ERR_OK 0x0

Returned on operation success.

◆ LIBMSR_ERR_SERIAL

#define LIBMSR_ERR_SERIAL 0x4000

Returned on error in serial I/O.

◆ MSR_BAUD

#define MSR_BAUD B9600

◆ MSR_BLOCKING

#define MSR_BLOCKING O_NONBLOCK

◆ MSR_CMD_CLZ

#define MSR_CMD_CLZ 0x6C

Request a leading-zero check on a card.

See also: msr_lz_t

◆ MSR_CMD_DIAG_COMM

#define MSR_CMD_DIAG_COMM 0x65

Request a communications test.

◆ MSR_CMD_DIAG_RAM

#define MSR_CMD_DIAG_RAM 0x87

Request a RAM test.

◆ MSR_CMD_DIAG_SENSOR

#define MSR_CMD_DIAG_SENSOR 0x86

Request a sensor test.

◆ MSR_CMD_ERASE

#define MSR_CMD_ERASE 0x63

Request a track erasure.

◆ MSR_CMD_FWREV

#define MSR_CMD_FWREV 0x76

Request the MSR device's firmware revision.

◆ MSR_CMD_GETCO

#define MSR_CMD_GETCO 0x64

Request the MSR device's current coercivity setting.

See also: msr_get_co()

◆ MSR_CMD_LED_GRN_ON

#define MSR_CMD_LED_GRN_ON 0x83

Request that the MSR device turn on the green LED.

See also: msr_flash_led()

◆ MSR_CMD_LED_OFF

#define MSR_CMD_LED_OFF 0x81

Request that the MSR device turn off all LEDs.

See also: msr_flash_led()

◆ MSR_CMD_LED_ON

#define MSR_CMD_LED_ON 0x82

Request that the MSR device turn on all LEDs.

See also: msr_flash_led()

◆ MSR_CMD_LED_RED_ON

#define MSR_CMD_LED_RED_ON 0x85

Request that the MSR device turn on the red LED.

See also: msr_flash_led()

◆ MSR_CMD_LED_YLW_ON

#define MSR_CMD_LED_YLW_ON 0x84

Request that the MSR device turn on the yellow LED.

See also: msr_flash_led()

◆ MSR_CMD_MODEL

#define MSR_CMD_MODEL 0x74

Request the MSR device's model number.

◆ MSR_CMD_RAW_READ

#define MSR_CMD_RAW_READ 0x6D

Request a raw read from the MSR device.

◆ MSR_CMD_RAW_WRITE

#define MSR_CMD_RAW_WRITE 0x6E

Request a raw write from the MSR device.

◆ MSR_CMD_READ

#define MSR_CMD_READ 0x72

Request a formatted read from the MSR device.

◆ MSR_CMD_RESET

#define MSR_CMD_RESET 0x61

Request a reset from the MSR device.

See also: msr_reset() and msr_init()

◆ MSR_CMD_SETBPC

#define MSR_CMD_SETBPC 0x6F

Request a change in the MSR device's BPC settings.

◆ MSR_CMD_SETBPI

#define MSR_CMD_SETBPI 0x62

Request a change in the MSR device's bits-per-inch (BPI) setting.

◆ MSR_CMD_SETCO_HI

#define MSR_CMD_SETCO_HI 0x78

Request that the MSR device change into Hi-Co mode.

See also: msr_set_hi_co()

◆ MSR_CMD_SETCO_LO

#define MSR_CMD_SETCO_LO 0x79

Request that the MSR device change into Lo-Co mode.

See also: msr_set_lo_co()

◆ MSR_CMD_SLZ

#define MSR_CMD_SLZ 0x7A

Request a set-leading-zero count change on a card.

◆ MSR_CMD_WRITE

#define MSR_CMD_WRITE 0x77

Request a formatted write from the MSR device.

◆ MSR_CO_HI

#define MSR_CO_HI 0x68

The response when the MSR device is in Hi-Co mode.

◆ MSR_CO_LO

#define MSR_CO_LO 0x6C

The response when the MSR device is in Lo-Co mode.

◆ MSR_ERASE_ALL

#define MSR_ERASE_ALL 0x07

Erase all three tracks.

◆ MSR_ERASE_TK1

#define MSR_ERASE_TK1 0x00

Erase only track 1.

◆ MSR_ERASE_TK1_TK2

#define MSR_ERASE_TK1_TK2 0x03

Erase track 1 and track 2.

◆ MSR_ERASE_TK1_TK3

#define MSR_ERASE_TK1_TK3 0x05

Erase track 1 and track 3.

◆ MSR_ERASE_TK2

#define MSR_ERASE_TK2 0x02

Erase only track 2.

◆ MSR_ERASE_TK2_TK3

#define MSR_ERASE_TK2_TK3 0x06

Erase track 2 and track 3.

◆ MSR_ERASE_TK3

#define MSR_ERASE_TK3 0x04

Erase only track 3.

◆ MSR_ESC

#define MSR_ESC 0x1B

ESC is frequently used as a start delimiter character.

◆ MSR_FS

#define MSR_FS 0x1C

ASCII file separator character is used to separate track data.

◆ MSR_FWREV_FMT

#define MSR_FWREV_FMT "REV?X.XX"

The format of the firmware revision response.

◆ MSR_MAX_TRACK_LEN

#define MSR_MAX_TRACK_LEN 255

The maximum length, in bytes, of a track.

◆ MSR_MAX_TRACKS

#define MSR_MAX_TRACKS 3

The maximum number of tracks on a card.

◆ MSR_MODEL_MSR206_1

#define MSR_MODEL_MSR206_1 0x31

◆ MSR_MODEL_MSR206_2

#define MSR_MODEL_MSR206_2 0x32

◆ MSR_MODEL_MSR206_3

#define MSR_MODEL_MSR206_3 0x33

◆ MSR_MODEL_MSR206_5

#define MSR_MODEL_MSR206_5 0x35

◆ MSR_RW_BAD

#define MSR_RW_BAD 0x2A /* '*' */

◆ MSR_RW_EMPTY

#define MSR_RW_EMPTY 0x2B /* '+' */

◆ MSR_RW_END

#define MSR_RW_END 0x3F /* '?' */

◆ MSR_RW_START

#define MSR_RW_START 0x73 /* 's' */

◆ MSR_STS_BPC_ERR

#define MSR_STS_BPC_ERR MSR_STS_ERR

The response to a failed BPC change request.

◆ MSR_STS_BPC_OK

#define MSR_STS_BPC_OK MSR_STS_OK

The response to a successful BPC change request.

◆ MSR_STS_BPI_ERR

#define MSR_STS_BPI_ERR MSR_STS_ERR

The response to a failed BPI change.

◆ MSR_STS_BPI_OK

#define MSR_STS_BPI_OK MSR_STS_OK

The response to a successful BPI change.

◆ MSR_STS_CO_ERR

#define MSR_STS_CO_ERR MSR_STS_ERR

The response to a failed coercivity change request.

◆ MSR_STS_CO_OK

#define MSR_STS_CO_OK MSR_STS_OK

The response to a successful coercivity change request.

◆ MSR_STS_COMM_OK

#define MSR_STS_COMM_OK 0x79

The response to a successful communications test.

◆ MSR_STS_ERASE_ERR

#define MSR_STS_ERASE_ERR MSR_STS_ERR

The response to a failed track erasure.

◆ MSR_STS_ERASE_OK

#define MSR_STS_ERASE_OK MSR_STS_OK

The response to a successful track erasure.

◆ MSR_STS_ERR

#define MSR_STS_ERR 0x41

A generic error status sent by the MSR device.

◆ MSR_STS_MODEL_OK

#define MSR_STS_MODEL_OK 0x53

The response to a successful model number request.

◆ MSR_STS_OK

#define MSR_STS_OK 0x30

A generic success status sent by the MSR device.

◆ MSR_STS_RAM_ERR

#define MSR_STS_RAM_ERR MSR_STS_ERR

The response to a failed RAM test.

◆ MSR_STS_RAM_OK

#define MSR_STS_RAM_OK MSR_STS_OK

The response to a successful RAM test.

◆ MSR_STS_RW_CMDBAD_ERR

#define MSR_STS_RW_CMDBAD_ERR 0x34

An invalid command issued during read/write.

◆ MSR_STS_RW_CMDFMT_ERR

#define MSR_STS_RW_CMDFMT_ERR 0x32

An error in command formatting during read/write.

◆ MSR_STS_RW_ERR

#define MSR_STS_RW_ERR 0x31

A generic read/write error.

◆ MSR_STS_RW_SWIPEBAD_ERR

#define MSR_STS_RW_SWIPEBAD_ERR 0x39

A bad card swipe during write.

◆ MSR_STS_SENSOR_OK

#define MSR_STS_SENSOR_OK MSR_STS_OK

The response to a successful sensor test.

◆ MSR_STS_SLZ_ERR

#define MSR_STS_SLZ_ERR MSR_STS_ERR

The response to a failed SLZ change.

◆ MSR_STS_SLZ_OK

#define MSR_STS_SLZ_OK MSR_STS_OK

The response to a successful SLZ change.

Typedef Documentation

◆ msr_bpc_t

typedef struct msr_bpc msr_bpc_t

Represents the MSR's BPC settings for each track.

◆ msr_cmd_t

typedef struct msr_cmd msr_cmd_t

Represents a command issued to the MSR device.

A MSR command consists of two bytes - an ASCII escape byte (MSR_ESC) and the command byte.

◆ msr_end_t

typedef struct msr_end msr_end_t

Represents the end of a read/write command.

Note: Currently unused.

◆ msr_lz_t

typedef struct msr_lz msr_lz_t

Represents leading zero counts on a card.

◆ msr_model_t

typedef struct msr_model msr_model_t

Represents the MSR's model.

Note: Currently unused.

◆ msr_track_t

typedef struct msr_track msr_track_t

Represents a single track on a magnetic card.

◆ msr_tracks_t

typedef struct msr_tracks msr_tracks_t

Represents all tracks on a magnetic card.

Function Documentation

◆ msr_commtest()

int msr_commtest ( int fd )

Perform a communications test.

This function issues an MSR_CMD_DIAG_COMM command to the device to perform a communications diagnostic test. After issuing this command, the device will respond with an MSR_STS_COMM_OK byte if the test passes.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_SERIAL on serial I/O failure.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_erase()

int msr_erase	(	int	fd,
		uint8_t	tracks
	)

Erase one or more tracks on a card.

This routine issues an MSR_CMD_ERASE command to the device to read erase a magstripe card. After the command is issued, the user must swipe a card through the MSR206. The function will block until the device returns a response code indicating that the erase operation completed successfully.

This function can erase various combinations of tracks, or erase all of them, depending on the tracks value specified:

MSR_ERASE_TK1 erase track 1 only

MSR_ERASE_TK2 erase track 2 only

MSR_ERASE_TK3 erase track 3 only

MSR_ERASE_TK1_TK2 erase tracks 1 and 2

MSR_ERASE_TK1_TK3 erase tracks 1 and 3

MSR_ERASE_TK2_TK3 erase tracks 2 and 3

MSR_ERASE_ALL erase all tracks

Parameters

fd	The device's fd.
tracks	The tracks to delete.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_flash_led()

int msr_flash_led	(	int	fd,
		uint8_t	led
	)

Toggle the LEDs on the MSR device.

This function is used to manually control the LEDs on the MSR206. The device has one green, one yellow and one red LED mounted in it. A given LED is controlled by specifying led as follows:

MSR_CMD_LED_GRN_ON - turn on green LED

MSR_CMD_LED_YLW_ON - turn on yellow LED

MSR_CMD_LED_RED_ON - turn on red LED

MSR_CMD_LED_OFF - turn all LEDs off

After an LED control command is issued to the device, the routine will pause for a tenth of a second to allow time for the command to be processed and the LED to light up.

Parameters

fd	The device's fd.
led	The LED to control.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_SERIAL | LIBMSR_ERR_DEVICE on error.

◆ msr_fwrev()

int msr_fwrev	(	int	fd,
		uint8_t *	buf
	)

Check the device's firmware revision.

This function issues an MSR_CMD_FWREV command to the device to retrieve its firmware revision code. The revision is saved in the supplied buffer, which must be at least 9 bytes.

Parameters

fd	The device's fd.
buf	The buffer to write the revision to.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_SERIAL on serial I/O failure.

◆ msr_get_co()

int msr_get_co ( int fd )

Get the device's coercivity level.

This function issues an MSR_CMD_GETCO command to retrieve the device's current coercivity setting, which is either MSR_CO_HI ('H') or MSR_CO_LO ('L').

Parameters

fd	The device's fd.

Returns: MSR_CO_HI if the device is in hi-co mode.; MSR_CO_LO if the device is in lo-co mode.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_init()

int msr_init ( int fd )

Initialize the MSR device.

This function issues a reset command to the MSR206 device, and then performs a communications diagnostic test. If the test succeeds, another reset is issued to ready the device for a read or write operation. Typically, msr_init() must be called before any significant operation, including reading and writing cards.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_iso_read()

int msr_iso_read	(	int	fd,
		msr_tracks_t *	tracks
	)

Read an ISO formatted card.

This routine issues an MSR_CMD_READ command to the device to read an ISO formatted magstripe card. After the command is issued, the user must swipe a card through the MSR206. The function will block until the card is read and the MSR206 is ready to return data from the tracks. The caller must allocate a pointer to an msr_tracks_t structure and supply a pointer to this structure via the tracks argument.

Parameters

fd	The device's fd.
tracks	A pointer to the msr_tracks_t to populate.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_SERIAL on serial I/O failure.

◆ msr_iso_write()

int msr_iso_write	(	int	fd,
		msr_tracks_t *	tracks
	)

Write an ISO formatted card.

This routine issues an MSR_CMD_WRITE command to the device to write to an ISO formatted magstripe card. The card does not need to be erased (any existing data is overwritten). The caller must allocate an msr_tracks_t structure and populate it with the data to be written to the card, then supply a pointer to this structure via the tracks argument. The data in the tracks must meet the ISO requirements.

After the write command is issued and the track data is written to the device, the function will block until a status code is read from the device.

Parameters

fd	The device's fd.
tracks	A pointer to the msr_tracks_t data to write.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_model()

int msr_model	(	int	fd,
		uint8_t *	buf
	)

Check the device's model.

This function issues an MSR_CMD_MODEL command to the device to retrieve its model code. The model code is saved in the supplied buffer, which must be at least 10 bytes.

Parameters

fd	The device's fd.
buf	The buffer to write the model to.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_pretty_output_bits()

void msr_pretty_output_bits	(	int	fd,
		msr_tracks_t	tracks
	)

Dump a "pretty" binary representation of tracks to a fd.

Parameters

fd	The fd to write to.
tracks	The tracks to dump.

◆ msr_pretty_output_hex()

void msr_pretty_output_hex	(	int	fd,
		msr_tracks_t	tracks
	)

Dump a "pretty" hexadecimal representation of tracks to a fd.

Parameters

fd	The fd to write to.
tracks	The tracks to dump.

◆ msr_pretty_output_string()

void msr_pretty_output_string	(	int	fd,
		msr_tracks_t	tracks
	)

Dump a "pretty" string representation of tracks to a fd.

Parameters

fd	The fd to write to.
tracks	The tracks to dump.

◆ msr_pretty_printer_bits()

void msr_pretty_printer_bits ( msr_tracks_t tracks )

Dump a "pretty" binary representation of tracks to stdout.

Parameters

tracks The tracks to dump.

◆ msr_pretty_printer_hex()

void msr_pretty_printer_hex ( msr_tracks_t tracks )

Dump a "pretty" hexadecimal representation of tracks to stdout.

Parameters

tracks The tracks to dump.

◆ msr_pretty_printer_string()

void msr_pretty_printer_string ( msr_tracks_t tracks )

Dump a "pretty" string representation of tracks to stdout.

Parameters

tracks The tracks to dump.

◆ msr_ram_test()

int msr_ram_test ( int fd )

Check the device's RAM.

This function issues an MSR_CMD_DIAG_RAM command to perform a diagnostic sense on the MSR206's internal RAM. If the RAM checks good, the device will return a status code of MSR_STS_RAM_OK.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_raw_read()

int msr_raw_read	(	int	fd,
		msr_tracks_t *	tracks
	)

Read raw data from a card.

This routine issues an MSR_CMD_RAW_READ command to the device to read arbitrary data from 3 tracks on a magstripe card. After the command is issued, the user must swipe a card through the MSR206. The function will block until the card is read and the MSR206 is ready to return data from the tracks. The caller must allocate a pointer to an msr_tracks_t structure and supply a pointer to this structure via the tracks argument.

Unlike the msr_iso_read() function, this routine bypasses the MSR206's internal data parser and returns data representing the raw bit pattern on the magnetic media. It is up to the caller to decode this data into a useful form.

Parameters

fd	The device's fd.
tracks	A pointer to the msr_tracks_t to populate.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_raw_write()

int msr_raw_write	(	int	fd,
		msr_tracks_t *	tracks
	)

Write raw data to a card.

This routine issues an MSR_CMD_RAW_WRITE command to the device to write arbitrary data to a magstripe card. The card does not need to be erased (any existing data is overwritten). The caller must allocate an msr_tracks_t structure and populate it with the data to be written to the card, then supply a pointer to this structure via the tracks argument. The data can be in any format.

After the write command is issued and the track data is written to the device, the function will block until a status code is read from the device.

Unlike the msr_iso_write() routine, this function bypasses the MSR206's internal parser and writes the bit pattern represented by the track data unmodified to the card. It's up to the caller to format the data in a meaningful way.

Parameters

fd	The device's fd.
tracks	A pointer to the msr_tracks_t data to write.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_reset()

int msr_reset ( int fd )

Reset the MSR device.

This function issues an MSR_CMD_RESET command to reset the device. This command does not return a status code. The routine pauses for a tenth of a second to wait for the reset to complete.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK.

◆ msr_reverse_byte()

const unsigned char msr_reverse_byte ( const unsigned char byte )

Reverse a single byte.

Parameters

byte	The byte to reverse.

Returns: The reversed byte.

◆ msr_reverse_track()

int msr_reverse_track ( msr_track_t * track )

Reverse a msr_track_t structure in-place.

Parameters

track A point to the msr_track_t to reverse.

Returns: LIBMSR_ERR_OK

◆ msr_reverse_tracks()

int msr_reverse_tracks ( msr_tracks_t * tracks )

Reverse a msr_tracks_t structure in-place.

Parameters

tracks A pointer to the msr_tracks_t to reverse.

Returns: LIBMSR_ERR_OK

◆ msr_sensor_test()

int msr_sensor_test ( int fd )

Check the device's sensor.

This function issues an MSR_CMD_DIAG_SENSOR command to perform a diagnostic sense on the mechanical card sensor in the MSR206. After issuing the command, the user is instructed to slide a card through the reader. No actual read is performed, however the hardware tests to verify that the card sensor registers the presence of the card in the track. If the card registers correctly, the device will return a status code of MSR_STS_SENSOR_OK.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_serial_close()

int msr_serial_close ( int fd )

Close a serial connection to the MSR device.

Parameters

fd	The file descriptor to close.

Returns: LIBMSR_ERR_OK

◆ msr_serial_open()

int msr_serial_open	(	char *	path,
		int *	fd,
		int	blocking,
		speed_t	baud
	)

Open a serial connection to the MSR device.

Parameters

path	The path to the serial device.
fd	The int pointer to store the file descriptor in.
blocking	The blocking flag (e.g., MSR_BLOCKING)
baud	The baud rate of the serial device (e.g., MSR_BAUD)

Returns: LIBMSR_ERR_OK on success; LIBMSR_ERR_SERIAL on failure

◆ msr_serial_read()

int msr_serial_read	(	int	fd,
		void *	buf,
		size_t	len
	)

Read a series of bytes from the MSR device.

Parameters

fd	The file descriptor to read from.
buf	The buffer to read into.
len	The length of the buffer.

Returns: LIBMSR_ERR_OK

◆ msr_serial_readchar()

int msr_serial_readchar	(	int	fd,
		uint8_t *	c
	)

Read a single character from the MSR device.

Parameters

fd	The file descriptor to read from.
c	A pointer to write the character into.

Returns: The character read

◆ msr_serial_write()

int msr_serial_write	(	int	fd,
		void *	buf,
		size_t	len
	)

Write a series of bytes to the MSR device.

Parameters

fd	The file descriptor to write to.
buf	The buffer to write.
len	The length of the buffer.

Returns: The number of bytes written, or -1 on error.

◆ msr_set_bpc()

int msr_set_bpc	(	int	fd,
		uint8_t	bpc1,
		uint8_t	bpc2,
		uint8_t	bpc3
	)

Set the MSR device's BPC value for each track.

This function issues an MSR_CMD_SETBPC command to bits per character configuration for all 3 tracks. (This command has no effect for other tracks.) It is assumed that this command only has meaning when using ISO read or write commands. The MSR206 supports writing data with BPC values from 5 to 8.

Parameters

fd	The device's fd.
bpc1	The new BPC value for track 1.
bpc2	The new BPC value for track 2.
bpc3	The new BPC value for track 3.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_set_bpi()

int msr_set_bpi	(	int	fd,
		uint8_t	bpi
	)

Set the MSR device's BPI value.

This function issues an MSR_CMD_SETBPI command to set the bits per inch configuration for track 2. (This command has no effect for other tracks.) It is assumed that this command only has meaning when writing data. The MSR206 supports writing data on track 2 with bpi values. Valid options are either 75 or 210 bits per inch.

Parameters

fd	The device's fd.
bpi	The new BPI value.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_set_hi_co()

int msr_set_hi_co ( int fd )

Set the device's coercivity to high.

This function issues an MSR_CMD_SETCO_HI command to switch the device to high coercivity mode. It is unclear if this affects both the read and write operations, though presumably it only affects writes by channeling more power to the write head so that it can update high-coercivity media.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_set_lo_co()

int msr_set_lo_co ( int fd )

Set the device's coercivity to low.

This function issues an MSR_CMD_SETCO_LO command to switch the device to low coercivity mode. It is unclear if this affects both the read and write operations, though presumably it only affects writes by channeling less power to the write head so that it can update low-coercivity media.

Parameters

fd	The device's fd.

Returns: LIBMSR_ERR_OK on success.; LIBMSR_ERR_DEVICE on device failure.

◆ msr_zeros()

int msr_zeros	(	int	fd,
		msr_lz_t *	lz
	)

Get the MSR device's current leading-zero setting.

The leading-zero setting is used by the device to determine how many leading zeros to write when writing ISO-formatted tracks. There are two values to the setting: one for tracks 1 and 3, and one for track 2.

Parameters

fd	The device's fd.
lz	A pointer to the msr_lz_t to populate.

Returns: LIBMSR_ERR_OK

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ LIBMSR_ERR_DEVICE

◆ LIBMSR_ERR_GENERIC

◆ LIBMSR_ERR_ISO

◆ LIBMSR_ERR_OK

◆ LIBMSR_ERR_SERIAL

◆ MSR_BAUD

◆ MSR_BLOCKING

◆ MSR_CMD_CLZ

◆ MSR_CMD_DIAG_COMM

◆ MSR_CMD_DIAG_RAM

◆ MSR_CMD_DIAG_SENSOR

◆ MSR_CMD_ERASE

◆ MSR_CMD_FWREV

◆ MSR_CMD_GETCO

◆ MSR_CMD_LED_GRN_ON

◆ MSR_CMD_LED_OFF

◆ MSR_CMD_LED_ON

◆ MSR_CMD_LED_RED_ON

◆ MSR_CMD_LED_YLW_ON

◆ MSR_CMD_MODEL

◆ MSR_CMD_RAW_READ

◆ MSR_CMD_RAW_WRITE

◆ MSR_CMD_READ

◆ MSR_CMD_RESET

◆ MSR_CMD_SETBPC

◆ MSR_CMD_SETBPI

◆ MSR_CMD_SETCO_HI

◆ MSR_CMD_SETCO_LO

◆ MSR_CMD_SLZ

◆ MSR_CMD_WRITE

◆ MSR_CO_HI

◆ MSR_CO_LO

◆ MSR_ERASE_ALL

◆ MSR_ERASE_TK1

◆ MSR_ERASE_TK1_TK2

◆ MSR_ERASE_TK1_TK3

◆ MSR_ERASE_TK2

◆ MSR_ERASE_TK2_TK3

◆ MSR_ERASE_TK3

◆ MSR_ESC

◆ MSR_FS

◆ MSR_FWREV_FMT

◆ MSR_MAX_TRACK_LEN

◆ MSR_MAX_TRACKS

◆ MSR_MODEL_MSR206_1

◆ MSR_MODEL_MSR206_2

◆ MSR_MODEL_MSR206_3

◆ MSR_MODEL_MSR206_5

◆ MSR_RW_BAD

◆ MSR_RW_EMPTY

◆ MSR_RW_END

◆ MSR_RW_START

◆ MSR_STS_BPC_ERR

◆ MSR_STS_BPC_OK

◆ MSR_STS_BPI_ERR

◆ MSR_STS_BPI_OK

◆ MSR_STS_CO_ERR

◆ MSR_STS_CO_OK

◆ MSR_STS_COMM_OK

◆ MSR_STS_ERASE_ERR

◆ MSR_STS_ERASE_OK

◆ MSR_STS_ERR

◆ MSR_STS_MODEL_OK

◆ MSR_STS_OK

◆ MSR_STS_RAM_ERR

◆ MSR_STS_RAM_OK

◆ MSR_STS_RW_CMDBAD_ERR

◆ MSR_STS_RW_CMDFMT_ERR

◆ MSR_STS_RW_ERR

◆ MSR_STS_RW_SWIPEBAD_ERR

◆ MSR_STS_SENSOR_OK

◆ MSR_STS_SLZ_ERR

◆ MSR_STS_SLZ_OK

Typedef Documentation

◆ msr_bpc_t
